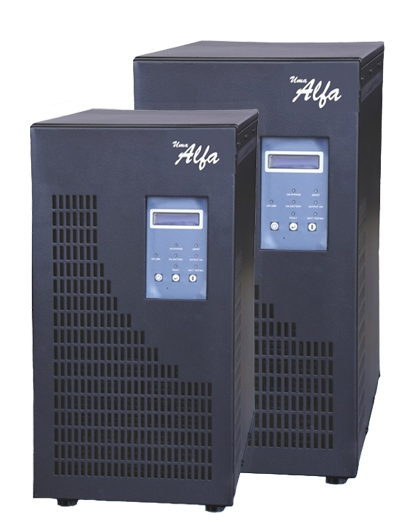

Quantum Power 1000

( UPS 1 IN 1 OUT )

E Powertronics offers the largest selection of power management and protection solutions available in the industry. From the desktop to the data center, from AC-powered to DC- powered equipment, ALFA is your one-stop partner for all your power needs. The advance IGBT inverter, coupled with an isolation transformer, enhances the reliability and load adaptability. This unique construction for input and output isolation provides the advantages of noise rejection as well as clean and safe neutral line to the load.


Quantum Power 1000 - Specifications

Capacity
KVA 3KVA 5KVA 7.5KVA 10KVA
WATT 2.7kW 4.5kW 6.75kW 9kW
TYPE Low Frequency Transformer based True On line Double Conversion
INPUT
Phase Single Phase
Input PF 0.9 (Standard) /1 (Customized)
Input Voltage Range 230 VAC 士 25%
Input Frequency 50HZ 士 10%
Input Ripple <5%
Soft Start 0~100 % 5 Second
Output
Nominal Voltage 220V/230V/240V AC,1P+N
Output Voltage Regulation 士 1 % for Linear & Non Liner Load
Output Frequency 50Hz 士 0.5%
Crest Factor >3:1
Output THD Linear Load <3%, Non-Linear Load <5%
Dynamic Characteristics Instant voltage < 士5% (From 0 to 100%), recover time <10ms
Overload Capacity At 115% Load Normal Work, 125% Load 10 Minute 150% Load 1 Minute,200% Load 1 Second
Inverter Efficiency More than 93% (Full Load)
Battery
Nominal DC Voltage 96V DC 180V DC 180V DC 180V DC
Charging Current 2-10 Amp Settable
Low Voltage Alarm 84 158 158 158
Low Voltage Trip 80 150 150 150
High Voltage Trip 116 218 218 218
Bypass
Phase Single Phase (P+N)
Manual Maintenance Bypass Switch Provided
Static No Break
Protection
Input Protection Input Voltage,Frequency Under/Over limit Protection
Output Protection Over Current,Short-circuit,Over/Under Voltage
Battery Protection Over Charge, Over-discharge Protection
Temperature Protection Inverter over temperature Protection
General Parameters
Working Environment Temp: 10 -55°C, Relative humidity : 30% - 90%
Communication Interface RS232/RS485,optional dry contact, SNMP card(For remote control via internet)
Parallel Operation Hot Stand By
Protection Level IP21
Safety Performance V in-n, V out-n 2000Vac,creepage<10mA,Insulating resistance > 2MΩ (5 V DC)
Noise (dB) 50-55 55-60
Dimension W X H X D (mm) 345 X 565 X 610 390 X 680 X 680
Weight (kg) 55 66 91 100

Features

Quantum Power
1000 Features

  • Fully Digital Signal Processing using the latest DSP technology
  • IGBT Rectifier so high input power factor
  • Dynamic Bypass with Eco mode
  • Remote management
  • Wide input voltage range
  • Compatible with Engine Generator
  • High reliability for Maximum System Availability
  • Handles 3: Crest Factor Loads
  • Intelligent Battery Management
  • Large LCD Display and Mimic Panel for Real-time information
  • Output isolation between UPS and Critical Load
  • Low electro-magnetic interference
  • Complies with international safety standards
