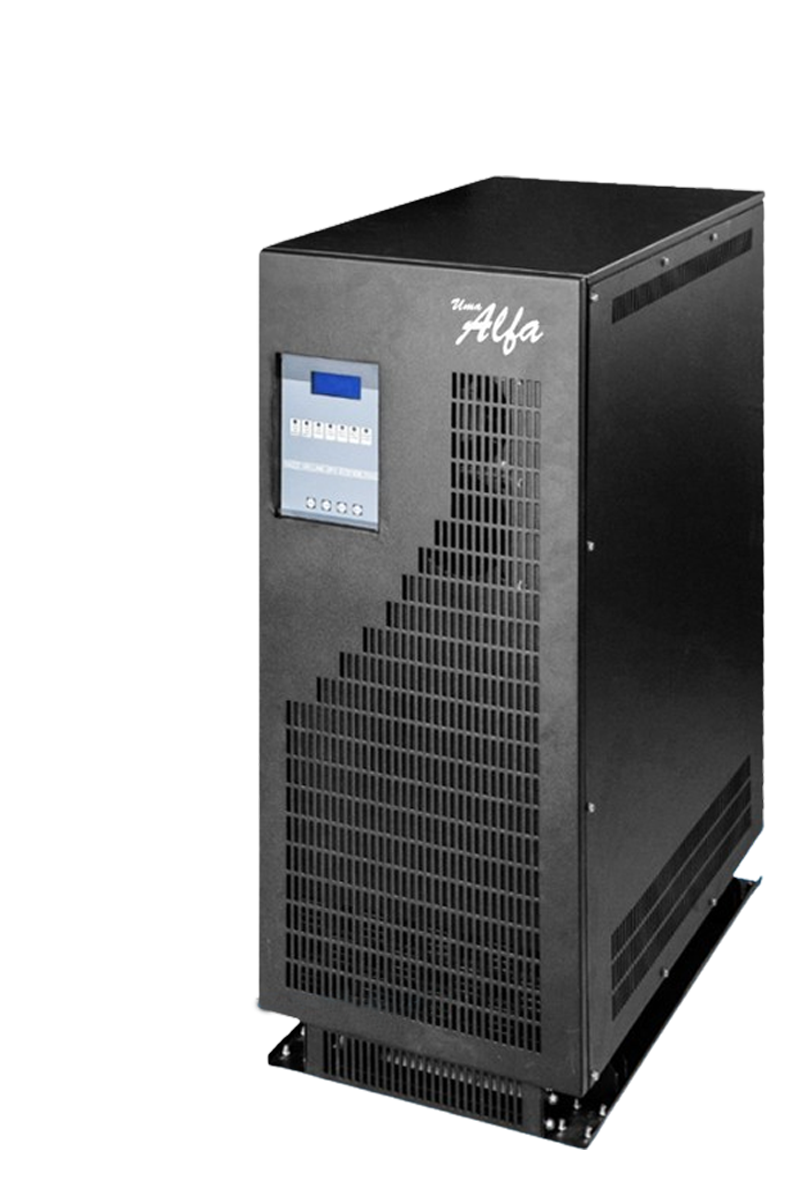

Elevator Back-Up UPS

State of art IGBT based PWM technology to increase crest factor Tolerance & Dynamic Stability High Inrush capability to handle Lift during Startup Very low Total Harmonic Distortion <3% All necessary protection like Short circuit Over Temp., Battery Low/High, Mains MCB Tripped etc. with comprehensive display 100% Pure, Reliable and Regulated Power Unbalanced Load Handling Capability Runs heavy duty appliances/equipment Extended overload capability (upto 300%) Startup without mains (Cold Start) Generator compatible Extended power back-up Time Built-In Galvanic Isolation Transformer

Read MoreNo found

Elevator Back-Up UPS - Specifications

Type
Type 3 - Phase Input - 3 Phase Output
Model POWERSERIES
Capacity 5kVA to 100kVA
INPUT
No. of Phases 3-Phases 4 Wire
Voltage Range 310V - 480V AC
Input Frequency Range 45 to 55Hz
Output
Load PF Range 0.8 Lagging
Phase 3-Phase 4 Wire
Output Waveform Pure Sine Wave
Voltage 400V 士 2%
Frequency 50Hz 士 0.1%
Load Crest Factor >4:1
Output Voltage THD ≤3% on Linear Load
Loading Capacity 110% for 2 Minutes
Transient Recovery 士4% under full Load Change and Corrected within 5 Cycles
Phase Displacement 120 士 1
Overload Capacity 105% continuous, 300% for 60 Seconds
By-pass
Maintenance By-pass Available
Battery
No. of 12V Batteries 5 & 7.5kVA (10) - 10 & 15kVA (15) - 20 & 25KVA (20) - 30 & 50kVA (30)
Voltage 120VDC - 360 VDC
Battery Charging Current 1 Amp to 10 Amp
Battery Recommendation From 26Ah to 200Ah
General Parameters
Indication All parameters shown in LCD Panel & LED Indicator
Protection Output Overload & Short Circuit, Output under & overvoltage, DC under & overvoltage, Single Phasing & Phase unbalance ( for 3-Ph Input Only)
Cooling Forced Air Cooling
UPS Efficiency ≥95%
Working Environment Temp : -10 - 50°C, relative Humidity : 30% - 90%
Acoustic noise Less than 55dB at 1 Meter

Features

AeroPlatina Series
Rectifier

  • Constant current, constant voltage setting
  • IGBT Rectifier so high input power factor
  • Dynamic Bypass with Eco mode
  • Remote management
  • Wide input voltage range
  • Compatible with Engine Generator
  • High reliability for Maximum System Availability
  • Handles 3: Crest Factor Loads
  • Intelligent Battery Management
  • Large LCD Display and Mimic Panel for Real-time information
  • Output isolation between UPS and Critical Load
  • Low electro-magnetic interference
  • Complies with international safety standards
