ProductInformation

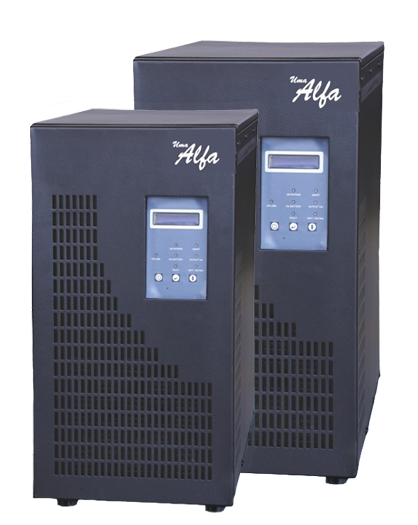

Quantum Power 5000

( UPS 3 IN 3 OUT )

E Powertronics offers the largest selection of power management and protection solutions available in the industry. From the desktop to the data center, from AC-powered to DC- powered equipment, ALFA is your one-stop partner for all your power needs. The advance IGBT inverter, coupled with an isolation transformer, enhances the reliability and load adaptability. This unique construction for input and output isolation provides the advantages of noise rejection as well as clean and safe neutral line to the load.


Quantum Power 5000 - Specifications

Capacity
KVA 10 15 20 30 40 50 60 80 100
KW 9 13.5 18 27 36 45 54 72 90
TYPE Low Frequency Transformer based True On line Double Conversion
INPUT
Phase Three Phase + N ( Four Wire)
Input PF 0.9 (Standard) /1 (Customized)
Input Voltage Range 415 VAC 士 25%
Input Frequency 50HZ 士 10%
Input Ripple <5%
Soft Start 0~100 % 5 Second
Output
Nominal Voltage 380V/400V/415V AC (3P+N)
Output Voltage Regulation 士 1 % for Linear & Non Liner Load
Output Frequency 50HZ 士 0.5%
Crest Factor >3:1
Output THD Pure Sine Wave
Dynamic Characteristics Instant Voltage < 士5% (From 0 to 100%), recover time <10ms
Overload Capacity At 115% Load Normal Work, 125% Load 10 Minute 150% Load 1 Minute, 200% Load 1 Second
Inverter Efficiency More than 93% (Full Load)
Battery
Nominal DC Voltage 360 360 360 360 360 360 360 360 360
Float Charging Voltage 406 406 406 406 406 406406406406
Equalized Charging Voltage 426 426 426 426 426 426426426426
Charging Current 2 - 10 Amp Settable
Low Voltage Alarm 315 315 315 315 315 315315315315
Low Voltage Trip 300 300 300 300 300 300300300300
High Voltage Trip 435 435 435 435 435 435 435 435 435
ByPass
Phase Three Phase (3P+N)
Manual Maintenance Bypass Switch Provided
Static No Break
Protection
Input Protection Input Voltage , Frequency Under/Over limit Protection
Output Protection Over Current, Short-circuit, Over/Under Voltage
Battery Protection Over Charge, Over - Discharge Protection
Temperature Protection Inverter over temperature Protection
General Parameters
Working Environment Temp: 10 -55°C, Relative humidity :30% -90%
Communication Interface RS232/RS485, Optional dry contact,SNMP card (For remote)
Parallel Operation Hot Stand By
Protection Level IP21
Safety Performance V in-n, V out -n 2 Vac, Creepage <1 mA, Insulating resistance >2 MΩ (500v DC)
Noise (DB) 50 - 55
Dimension W X H X D (mm) 580 X 990 X 750 875 X 975 X 800 1160 X 980 X 770 1400 X 1150 X 810
Weight (kg) 185 210 230 295 310 350 490 750 850

Features

Quantum Power
5000 Features

  • Fully Digital Signal Processing using the latest DSP technology
  • IGBT Rectifier so high input power factor
  • Dynamic Bypass with Eco Mode
  • Remote management
  • Wide input voltage range
  • Compatible with Engine Generator
  • High reliability for Maximum System Availability
  • Handles 3: Crest Factor Loads
  • Intelligent Battery Management
  • Large LCD Display and Mimic Panel for Real-time information
  • Output isolation between UPS and Critical Load
  • Low electro-magnetic interference
  • Complies with international safety standards
