Catagory

( Rectifier )

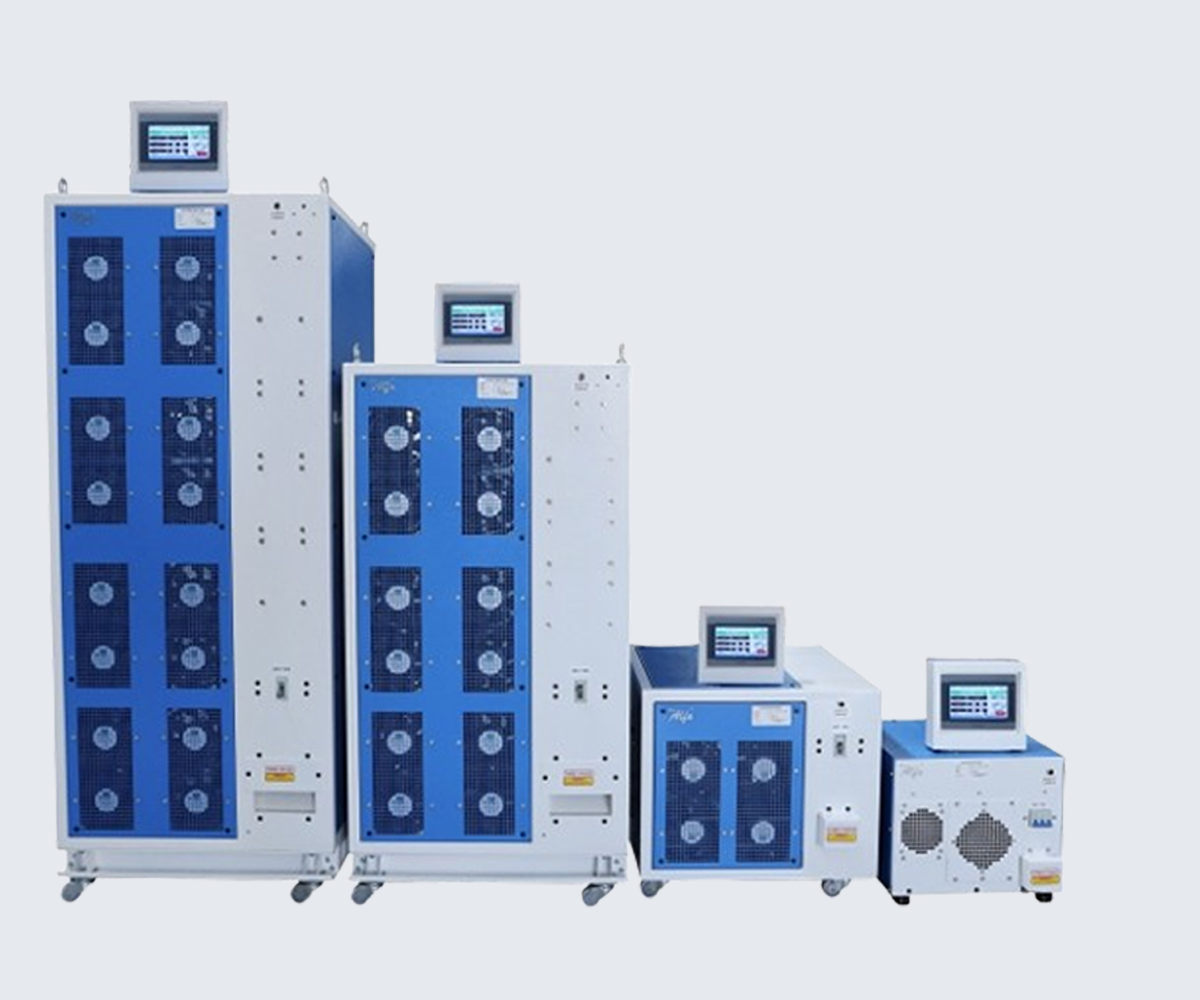

AeroPlatina Series

Power saving (high efficiency≥90%) Much less process time needed Low ripple at all output current Special treatment in corrosive factory Digital control, software programming High stability to load variation Long time high control accuacy (≥0.5%) RS485 communication Optional Amperehour for dosing system control Timer function for automatic running Resolution 1A and 0.1A Accurate output value setting Circuit board are anti corrosion treated, screws are stainless steel material

Read MoreNo found

AeroPlatina Series - Specifications

Rectifier type IGBT high frequency rectifier,modular structure
Working duty 100% 24 hours continuous running
Supply Voltage 415W AC +10% 3 phase 3 wire, 50-60Hz
Rated Output voltage DC 8V, 12V
Rated output current DC 500, 750, 1000, 1500, 2000 Amp
Output range 0-100%
Control Accuracy ≤±0.5%
Power factor ≥0.94
Efficiency typical 90% at rated output
Current ripple ≥2% of rated output current at constant current mode, low ripple in whole range provide good plating quality.
Control mode constant current / constant voltage
Cooling Forced air cooling
Protections Output overcurrent protection Short circuit protection Over heat protection input over/under voltage protection IGBT Driving protection
Ambient temperature Max. 400, derated operation up to 5011
Altitude ≤2000m altitude. 3De-rated operation if higher.
Humidity Max. 90% RH, non-condensing

Features

AeroPlatina Series
Rectifier

  • Constant current, constant voltage setting
  • IGBT Rectifier so high input power factor
  • Dynamic Bypass with Eco mode
  • Remote management
  • Wide input voltage range
  • Compatible with Engine Generator
  • High reliability for Maximum System Availability
  • Handles 3: Crest Factor Loads
  • Intelligent Battery Management
  • Large LCD Display and Mimic Panel for Real-time information
  • Output isolation between UPS and Critical Load
  • Low electro-magnetic interference
  • Complies with international safety standards
