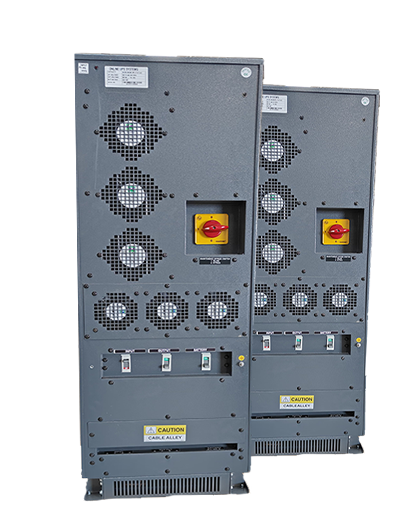

Quantum Power 7000

(UPS 3 IN 3 OUT) [DSP BASED]

In An Environment Where The Stability Of Your Power Supply Is Paramount, Uma Powertronic's DSP (Digital Signal Processing)-Based UPS (Uninterruptible Power Supply) Systems Deliver Exceptional Performance And Reliability. Designed To Provide Precise And Intelligent Power Management, Our Ups Systems Ensure The Protection And Seamless Operation Of Your Critical Devices And Applications.


Quantum Power 7000 - Specifications

Capacity
KVA 20 30 40 50 60 80 100 120
KW 16 24 32 40 48 64 80 96
TYPE Low Frequency Transformer based True On line Double Conversion
INPUT
Phase Three Phase + N ( Four Wire)
Input PF 0.9 (Standard) / 0.9 (Customized)
Input Voltage Range 415 VAC +/- 25%
Input Frequency 50HZ +/- 10%
Output
Nominal Voltage 380V/400V/415V AC (3P+N)
Output Voltage Regulation For Liner & Non Liner Load +/- 1%
Output Frequency 50HZ +/- 0.5%
Crest Factor >3:1
WaveForm Sinusoidal
Output THD Pure Sine Wave
Dynamic Characteristics Instant Voltage < 士5% (From 0 to 100%), recover time <10ms
Overload Capacity At 115% Load Normal Work, 125% Load 10 Minute 150% Load 1 Minute, 200% Load 1 Second
Inverter Efficiency More than 93% (Full Load)
Battery
Nominal DC Voltage 360 360 360 360 360 360 360 360
Float Charging Voltage 406 406 406 406 406 406 406 406
Equalized Charging Voltage 426 426 426 426 426 426 426 426
Charging Current 1 - 10 Ampere Settable
Low Voltage Alarm 315 315 315 315 315 315 315 315
Low Voltage Trip 300 300 300 300 300 300 300 300
High Voltage Trip 435 435 435 435 435 435 435 435
ByPass
Phase Three Phase (3P+N)
Manual InBuilt Not Provided
Static Optional
Protection
Input Input Voltage , Frequency Under/Over limit Protection
Output Protection Over Current, Short-circuit, Over/Under Voltage Protection
Battery Protection Over Charge, Over - Discharge Protection
Temperature Protection Inverter over temperature Protection
Parameters
Weight (kg) 230 KG 295 KG 310 KG 350 KG 490 KG 750 KG 850 KG
Dimension W X H X D (mm) 580 x 990 x 750 875 x 975 x 800 1160 x 980 x 770 1400 x 1150 x 810

Features

Quantum Power
7000 Features

  • DSP Technology Ensures High-Speed And Precise Control Of The Power Supply For Enhanced Performance
  • High Efficiency : Advanced power Conversion And Management Reduce Energy Consumption And Operational Costs
  • Pure Sine Wave Output: provides Clean And Stable Power, Ideal For Sensitive Electronic Equipment
  • LCD Display: Real-Time Monitoring Of System Status, Battery Level, And Power Conditions
  • Scalability: suitable For Various Power Requirements,From Small Office Setups To Large Industrial Operations
